| ITEM | PARAMETER | |

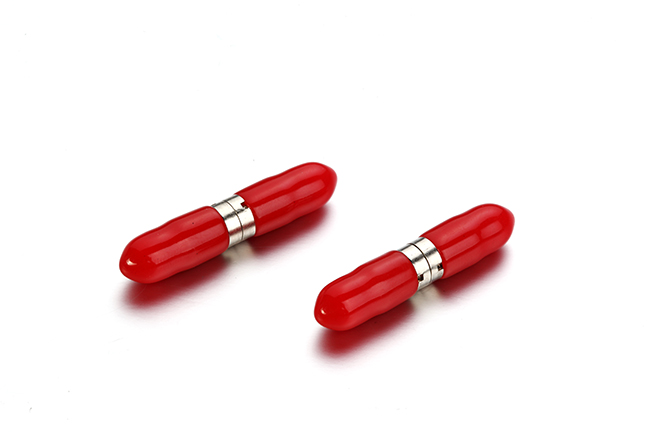

| Applicative adapter type | DIN | |
| Fiber mode | Single mode | Multi-mode |
| Test wavelength | 1310nm, 1550nm | 850nm, 1300nm |
| Insertion Loss | typical≤0.15dB,Max≤0.20dB | typical≤0.15dB,Max≤0.20dB |
| Repeatability | ≤0.10dB | |
| Interchangeability | ≤0.20dB | |
| Channels | Simplex | |
| Body material | metal | |
| Sleeve material | Ceramic(ZrO2) | |
| Operating Temperature | -20oC to +70oC | |
| Storage Temperature | -40oC to +85oC | |
