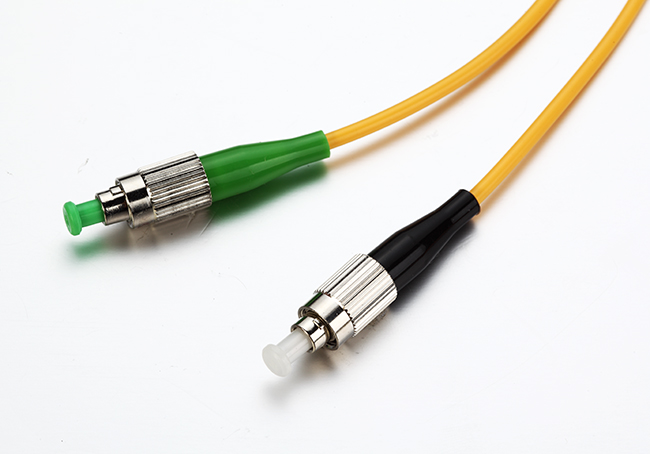

FC fiber patch cord

111819255216

Feature
Comply with Telcordia GR-326-CORE
Comply with YD/T-1272.4
Low insertion loss
apply to CATV、Telecom、Communication etc.
SPECIFICATION	S.M			M.M
	PC	UPC	APC
Insertion Loss(dB)	≤0.3dB			≤0.5dB
Return Loss(dB)	≧50dB	≧55dB	≧60dB	---
Durability(1000 matings)	≦0.2dB
Operating Temperature	-40~ +85°C
Storage Temperature	-40~ +85°C
Cable Diameter(mm)	0.9, 2.0, 3.0mm, Simplex ,Duplex
Cable Length(m)	Up to customer's request
